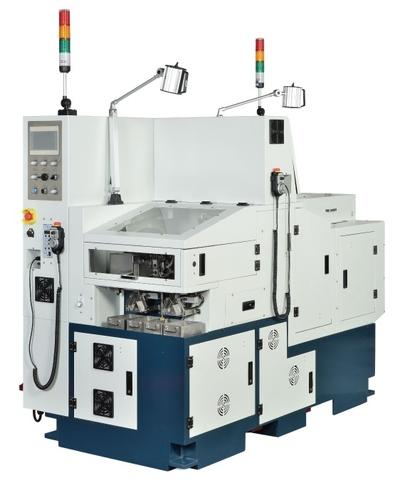

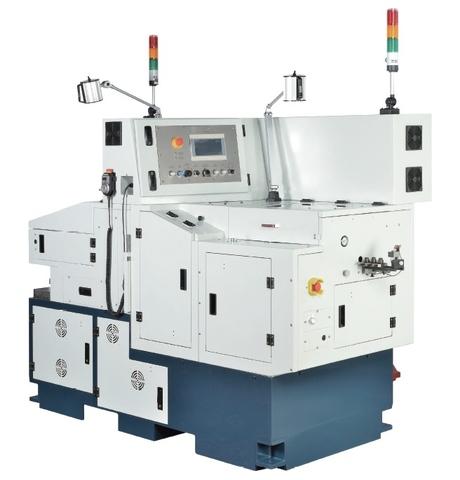

Header & Thread Roller Micro Combined Former M0.8~φ2X6mm

HT05

Vacuum Transfer System: From the heading station the headed blanks are instantly transmitted to the drum of a rotary feeder by the perfect vacuum transfer system. The parts thereafter will be continuously fed to the rolling station to form the thread.

Model No.
HT05
Wire Diameter (mm)
M0.8 ~ M2.0
Cut-Off Length (mm)
2~6
Max. KO Length (mm)
6
New Weight(kg)1800
Up/Down Stroke26
Output Free Run(pcs/min)
80~220
Main Slider Stroke (mm)
36
P.K.O. Stroke (mm)
6
Main Motor
 2HP~4P
